In this lecture we’ll introduce another classification technique, \(k\)-Nearest Neighbors.
First we’ll introduce the notion of parametric and nonparametric models.
There are many ways to define models (whether supervised or unsupervised).
However a key distinction is this:
Parametric models
Nonparametric models
When I see a bird that walks like a duck and swims like a duck and quacks like a duck, I call that bird a duck.
–James Whitcomb Riley (1849 - 1916)
Like any classifier, \(k\)-Nearest Neighbors is trained by providing it a set of labeled data.
However, at training time, the classifier does very little. It just stores away the training data.
demo_y = [1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0]
demo_X = np.array([[-3,1], [-2, 4], [-2, 2], [-1.5, 1], [-1, 3], [0, 0], [1, 1.5], [2, 0.5], [2, 3], [2, 0], [3, 1], [4, 4], [0, 1]])
test_X = [-0.3, 0.7]
#
plt.scatter(demo_X[:,0], demo_X[:,1], c=demo_y, cmap=cmap_bold, s=80)
plt.axis('equal')
plt.axis('off')
plt.title('Training Points: 2 Classes')
plt.show()
At test time, simply
By “nearest” we usually mean in Euclidean distance.
plt.scatter(demo_X[:, 0], demo_X[:, 1], c=demo_y, cmap=cmap_bold, s=80)
plt.plot(test_X[0], test_X[1], 'ok', markersize=10)
plt.annotate('Test Point', test_X, [75, 25],
textcoords = 'offset points', fontsize = 14,
arrowprops = {'arrowstyle': '->'})
plt.axis('equal')
plt.axis('off')
plt.title('Training Points: 2 Classes')
plt.show()
plt.scatter(demo_X[:, 0], demo_X[:, 1], c=demo_y, cmap=cmap_bold, s=80)
plt.plot(test_X[0], test_X[1], 'ok', markersize=10)
ax=plt.gcf().gca()
circle = mp.patches.Circle(test_X, 0.5, facecolor = 'red', alpha = 0.2)
plt.axis('equal')
plt.axis('off')
ax.add_artist(circle)
plt.title('1-Nearest-Neighbor: Classification: Red')
plt.show()
plt.scatter(demo_X[:,0], demo_X[:,1], c=demo_y, cmap=cmap_bold, s=80)
test_X = [-0.3, 0.7]
plt.plot(test_X[0], test_X[1], 'ok', markersize=10)
ax=plt.gcf().gca()
circle = mp.patches.Circle(test_X, 0.9, facecolor = 'gray', alpha = 0.3)
plt.axis('equal')
plt.axis('off')
ax.add_artist(circle)
plt.title('2-Nearest-Neighbor')
plt.show()
import matplotlib.pyplot as plt
plt.figure(figsize=(7, 6))
ax=plt.gcf().gca()
circle = mp.patches.Circle(test_X, 1.4, facecolor = 'blue', alpha = 0.2)
ax.add_artist(circle)
plt.scatter(demo_X[:,0], demo_X[:,1], c=demo_y, cmap=cmap_bold, s=80)
test_X = [-0.3, 0.7]
plt.plot(test_X[0], test_X[1], 'ok', markersize=10)
plt.axis('equal')
plt.axis('off')
plt.title('3-Nearest-Neighbor: Classification: Blue')
plt.tight_layout()
plt.show()
\(k\)-Nearest Neighbors can do either hard or soft classification.
Which may be indeterminate, as above.
\[ p(x = c\,|\,\mathbf{x}, k) = \frac{\text{number of points in neighborhood with label } c}{k} \]
Each value of \(k\) results in a different “model”.
The complexity of the resulting model is therefore controlled by the hyperparameter \(k\).
We will want to select \(k\) using held-out data to avoid over-fitting.
Consider this dataset where items fall into three classes:
import sklearn.datasets as sk_data
X, y = sk_data.make_blobs(n_samples=150,
centers=[[-2, 0],[1, 5], [2.5, 1.5]],
cluster_std = [2, 2, 3],
n_features=2,
center_box=(-10.0, 10.0),random_state=0)
plt.figure(figsize = (5, 5))
plt.axis('equal')
plt.axis('off')
plt.scatter(X[:, 0], X[:, 1], c = y, cmap = cmap_bold, s = 80)
plt.show()
Let’s observe how the complexity of the resulting model changes as we vary \(k\).
We’ll do this by plotting the decision regions. These show how the method would classify each potential test point in the space.
# Plot the decision boundary. For that, we will assign a color to each
# point in the mesh [x_min, x_max]x[y_min, y_max].
h = .1 # step size in the mesh
x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, h),
np.arange(y_min, y_max, h))f, axs = plt.subplots(1, 3, figsize=(15, 5))
for i, k in enumerate([1, 5, 25]):
knn = KNeighborsClassifier(n_neighbors = k)
knn.fit(X, y)
Z = knn.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)
axs[i].pcolormesh(xx, yy, Z, cmap = cmap_light, shading = 'auto')
axs[i].axis('equal')
axs[i].axis('off')
axs[i].set_title(f'Decision Regions for $k$ = {k}')
plt.show()
Notice how increasing \(k\) results in smoother decision boundaries.
These are more likely to show good generalization ability.
Working with a \(k\)-NN classifier can involve some challenges.
The computational cost of classification grows linearly with the size of the training data. Note that the training step is trivial, but the classification step can be prohibitively expensive.
Euclidean distance is the most common distance function used in \(k\)-NN so data scaling is important. As previously discussed, features should be scaled to prevent distance measures from being dominated by a potentially small subset of features.
The curse of dimensionality. If the training data lives in a high dimensional space, Euclidean distance measures become less effective.
This last point is subtle but important, so we will now look at the curse of dimensionality more closely.
The curse of dimensionality is a somewhat tongue-in-cheek term for serious problems that arise when we use geometric algorithms in high dimensions.
There are various aspects of the curse that affect \(k\)-NN.
The phrase `curse of dimensionality’ was coined by the mathematician Richard Bellman in 1957 in his book Dynamic Programming.
\(k\)-NN relies on there being one or more “close” points to the test point \(x\).
In other words, we need the training data to be relatively dense, so there are “close” points everywhere.
Unfortunately, the amount of space we work in grows exponentially with the dimension \(d\).
Hence, points in high-dimensional spaces tend not to be close to one another at all.
One very intuitive way to think about it is this.
In order for two points to be close in \(\mathbb{R}^d\), they must be close in each of the \(d\) dimensions. As the number of dimensions grows, it becomes harder and harder for a pair of points to be close in each dimension.
Let’s see how distances shrink in high dimensions by way of an example.
Let’s generate 1000 normally distributed points in 2D, 3D, 100D, and 1000D and look at the ratio of the largest to smallest distance between points.
First, let’s generate the data.
import numpy as np
# Fix the random seed so we all have the same random numbers
np.random.seed(0)
n_data = 1000
# Create 1000 data examples (columns) each with 2 dimensions (rows)
n_dim = 2
x_2D = np.random.normal(size=(n_data, n_dim))
# Create 1000 data examples (columns) each with 3 dimensions (rows)
n_dim = 3
x_3D = np.random.normal(size=(n_data, n_dim))
# Create 1000 data examples (columns) each with 100 dimensions (rows)
n_dim = 100
x_100D = np.random.normal(size=(n_data, n_dim))
# Create 1000 data examples (columns) each with 1000 dimensions (rows)
n_dim = 1000
x_1000D = np.random.normal(size=(n_data, n_dim))import matplotlib.pyplot as plt
# scatter plot of the 2D data
plt.scatter(x_2D[:,0], x_2D[:,1])
plt.title('2D data')
plt.show()
# make an interactive scatter plot of the 3D data
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
ax.scatter(x_3D[:,0], x_3D[:,1], x_3D[:,2])
plt.title('3D data')
plt.show()
Define a function to calculate the ratio of the largest to smallest distance between points in a dataset.
from scipy.spatial import distance
def distance_ratio(x, metric='euclidean'):
if metric == 'euclidean':
ord = 2
elif metric == 'manhattan':
ord = 1
elif metric == 'cosine':
pass
else:
raise ValueError(f"Metric {metric} not supported")
smallest_dist = np.inf
largest_dist = 0
for i in range(x.shape[0]):
for j in range(i + 1, x.shape[0]): # start from i+1 to avoid redundant calcuations
if i != j:
if metric == 'euclidean' or metric == 'manhattan':
dist = np.linalg.norm(x[i,:] - x[j,:], ord=ord)
elif metric == 'cosine':
dist = distance.cosine(x[i,:].flatten(), x[j,:].flatten())
if dist < smallest_dist:
smallest_dist = dist
if dist > largest_dist:
largest_dist = dist
# print(f"smallest_dist = {smallest_dist}, largest_dist = {largest_dist}")
# Calculate the ratio and return
dist_ratio = largest_dist / smallest_dist
return dist_ratioAnd then calculate the ratio for each dataset.
dist_ratio_2d = distance_ratio(x_2D)
print('Ratio of largest to smallest distance 2D: %3.3f'%(dist_ratio_2d))
dist_ratio_3d = distance_ratio(x_3D)
print('Ratio of largest to smallest distance 3D: %3.3f'%(dist_ratio_3d))
dist_ratio_100d = distance_ratio(x_100D)
print('Ratio of largest to smallest distance 100D: %3.3f'%(dist_ratio_100d))
dist_ratio_1000d = distance_ratio(x_1000D)
print('Ratio of largest to smallest distance 1000D: %3.3f'%(dist_ratio_1000d))Ratio of largest to smallest distance 2D: 2699.982
Ratio of largest to smallest distance 3D: 356.654
Ratio of largest to smallest distance 100D: 1.974
Ratio of largest to smallest distance 1000D: 1.228plt.scatter([2,3,100,1000], [dist_ratio_2d, dist_ratio_3d, dist_ratio_100d, dist_ratio_1000d])
plt.plot([2,3,100,1000], [dist_ratio_2d, dist_ratio_3d, dist_ratio_100d, dist_ratio_1000d], '--', color='lightgray')
plt.xscale('log')
plt.title('Euclidean Distance ratio')
plt.xlabel('Dimension')
plt.ylabel('Distance ratio')
plt.show()

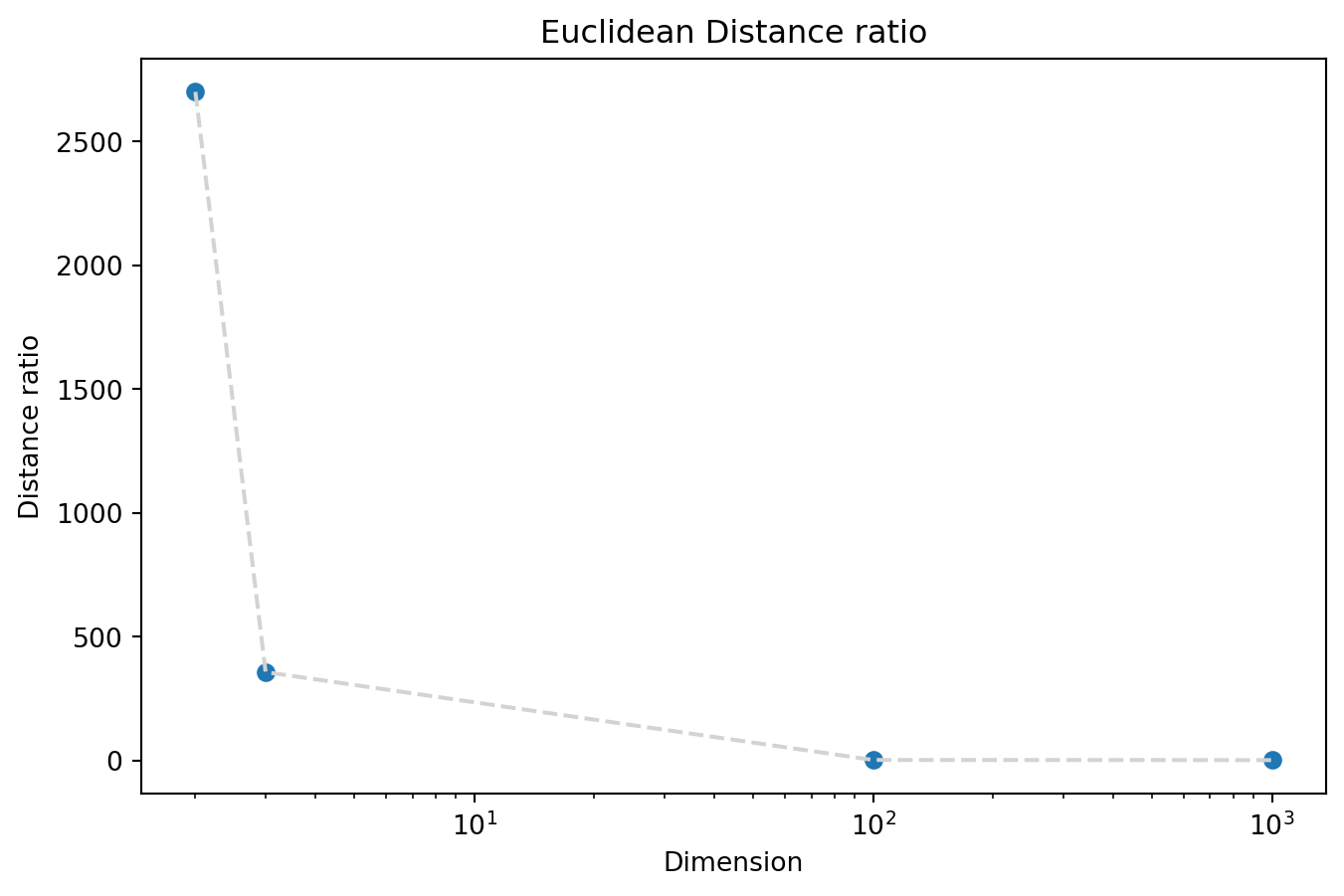

You see that the ratio of the largest to smallest distance drops dramatically as the dimension increases.
The above phenomenon is related to the strange phenomenon of the volume of a hypersphere (or n-ball) in increasing dimensions.
For a fascinating exploration of the properties of unit spheres in high dimension, see An Adventure in the Nth Dimension by Brian Hayes in American Scientist.
Now, the volume of a hypersphere in 2D and 3D is:
The general equation for a hypersphere of radius \(R\) in \(d\) dimensions is:
\[ V_d(R) = \frac{\pi^{d/2}}{\Gamma\bigl(\tfrac d2 + 1\bigr)}R^d, \]
where \(\Gamma\) is Euler’s gamma function and simplifies to \(\Gamma(d) = (d - 1)!\) for all positive integers \(d\).
Here’s a function to calculate the volume of a hypersphere of a given radius and dimension.
import scipy.special as sci
def volume_of_hypersphere(radius, dimensions):
pi = np.pi
volume = (pi ** (dimensions / 2)) / (sci.gamma(dimensions / 2 + 1)) * (radius ** dimensions)
return volumeAnd now let’s calculate the volume of a hypersphere of unit radius for dimensions 1 to 20 and store it in a list.
radius = 1.0
vols = []
for c_dim in range(1,21):
vols.append(volume_of_hypersphere(radius, c_dim))
# print("Volume of unit radius hypersphere in %d dimensions is %3.3f"%(c_dim, volume_of_hypersphere(radius, c_dim)))And plot the results.
# plot vols
plt.scatter(range(1,21), vols)
plt.xlabel('Dimensions')
plt.ylabel('Volume')
plt.title('Volume of unit radius hypersphere')
plt.show()
The volume decreases to almost nothing in high dimensions.
Another strange phenomenon to think about is via another example.
Assume you have data uniformly distributed in a hypercube with side length 2 which will exactly fit a unit hypersphere.
As the dimension grows, we want to know what fraction of the data is within unit distance of the center.
side_length = 2
cube_volumes = [(lambda side, dim: side ** dim)(side_length, dim) for dim in range(1, 21)]
vol_ratios = [vols[i] / cube_volumes[i] for i in range(len(vols))]plt.scatter(range(1,21), vol_ratios)
plt.xlabel('Dimensions')
plt.ylabel('Volume ratio')
plt.title('Volume of unit radius hypersphere / Volume of enclosing hypercube')
plt.show()

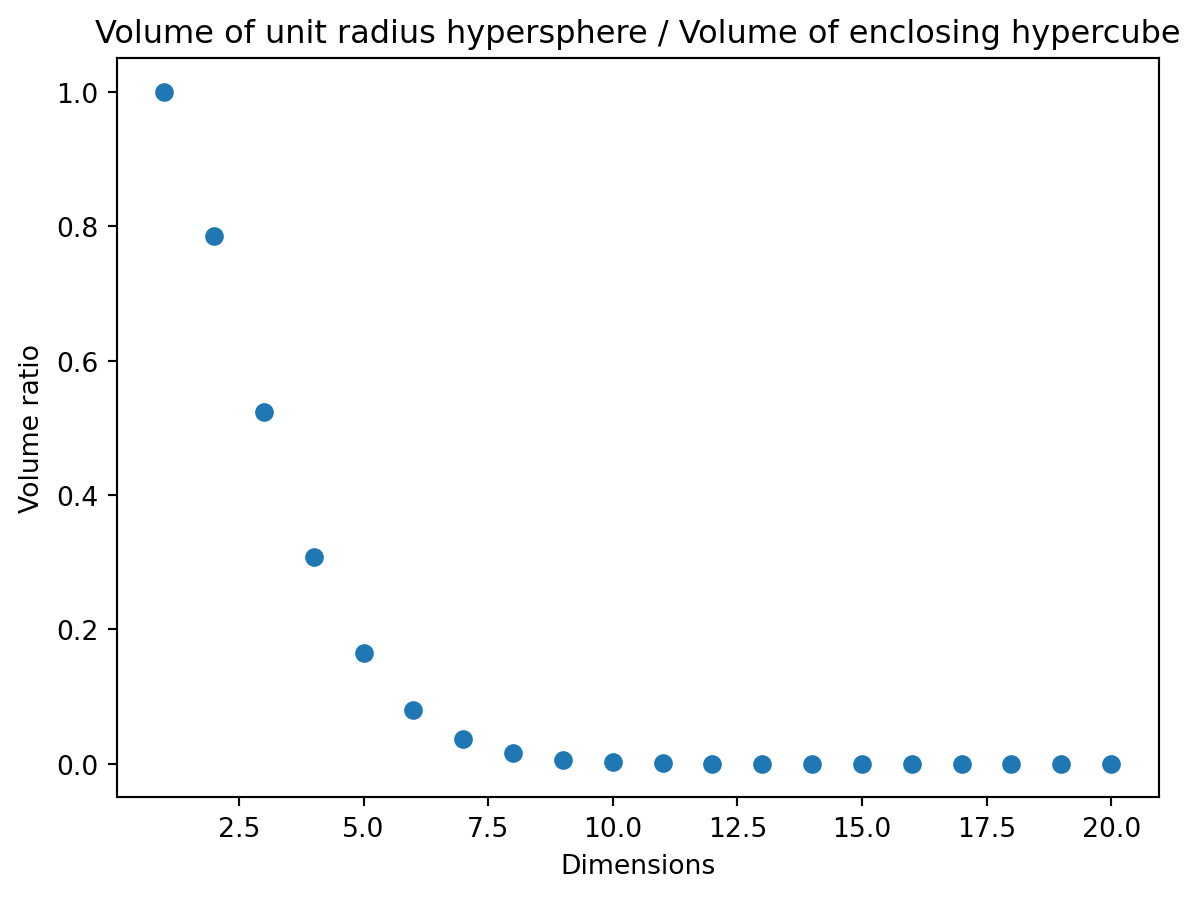

The fraction quickly goes to zero as the dimension increases.
Perhaps an intuition is to think about the space in the “corners” of the hypercube. As the dimension grows, there are more corners.
Another strange thing about high dimensions is that most of the volume of a hypersphere is in the outer shell.

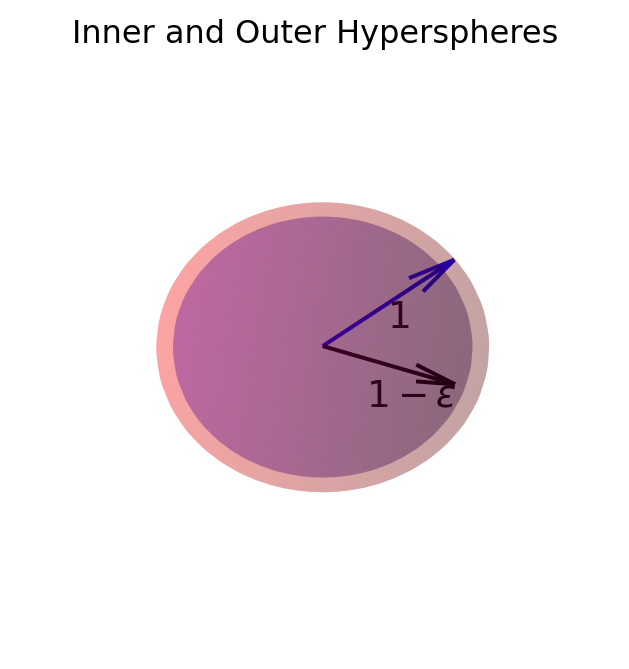

We can compare the volumes of hyperspheres of radius \(1\) and \(1-\epsilon\) for a small \(\epsilon\).
ax = plt.figure(figsize = (4, 4)).add_subplot(projection = '3d')
# coordinates of sphere surface
u, v = np.mgrid[0:2*np.pi:50j, 0:np.pi:50j]
x = np.cos(u)*np.sin(v)
y = np.sin(u)*np.sin(v)
z = np.cos(v)
#
ax.plot_surface(x, y, z, color='r', alpha = 0.2)
s3 = 1/np.sqrt(3)
ax.quiver(0, 0, 0, s3, s3, s3, color = 'b')
ax.text(s3/2, s3/2, s3/2-0.2, '1', size = 14)
#
eps = 0.9
#
ax.plot_surface(eps * x, eps * y, eps * z, color='b', alpha = 0.2)
ax.quiver(0, 0, 0, eps, 0, 0, color = 'k')
ax.text(1/2-0.2, 0, -0.4, r'$1-\epsilon$', size = 14)
ax.set_axis_off()
plt.title('Inner and Outer Hyperspheres')
plt.show()
Let’s create a function to calculate the proportion of the volume of a hypersphere that is in the outer \(\epsilon\) of the radius.
def get_prop_of_volume_in_outer_epsilon(dimension, epsilon):
outer_radius = 1.0
outer_volume = volume_of_hypersphere(outer_radius, dimension)
inner_radius = 1 - epsilon
inner_volume = volume_of_hypersphere(inner_radius, dimension)
proportion = (outer_volume - inner_volume) / outer_volume
# print(f"Outer volume: {outer_volume}, Inner volume: {inner_volume}")
return proportionLet’s calculate the proportion of the volume in the outer 1% of the radius for dimensions 1 to 300.
propvols = []
for c_dim in [1,2,10,20,50,100,150,200,250,300]:
propvols.append(get_prop_of_volume_in_outer_epsilon(c_dim, 0.01))
print('Proportion of volume in outer 1 percent of radius in %d dimensions =%3.3f'%(c_dim, get_prop_of_volume_in_outer_epsilon(c_dim, 0.01)))Proportion of volume in outer 1 percent of radius in 1 dimensions =0.010
Proportion of volume in outer 1 percent of radius in 2 dimensions =0.020
Proportion of volume in outer 1 percent of radius in 10 dimensions =0.096
Proportion of volume in outer 1 percent of radius in 20 dimensions =0.182
Proportion of volume in outer 1 percent of radius in 50 dimensions =0.395
Proportion of volume in outer 1 percent of radius in 100 dimensions =0.634
Proportion of volume in outer 1 percent of radius in 150 dimensions =0.779
Proportion of volume in outer 1 percent of radius in 200 dimensions =0.866
Proportion of volume in outer 1 percent of radius in 250 dimensions =0.919
Proportion of volume in outer 1 percent of radius in 300 dimensions =0.951# plot propvols
plt.scatter([1,2,10,20,50,100,150,200,250,300], propvols)
plt.xlabel('Dimensions')
plt.ylabel('Proportion of volume in outer 1%')
plt.title('Proportion of volume in outer 1% of diameter of hypersphere')
plt.show()
By the time we get to 300 dimensions most of the volume is in the outer 1 percent.
What is the fraction \(f_d\) of all the points that are within a unit distance, but not within a distance of \(1-\epsilon\)?
Let
\[ K_d = \frac{\pi^{d/2}}{\Gamma\bigl(\tfrac d2 + 1\bigr)} \]
so that the volume of a hypersphere of radius \(R\) is \(K_d \times R^d\).
Then for \(R=1\) and \(R=1-\epsilon\) we have:
\[ \begin{align*} f_d &= \frac{\text{Volume of Shell}}{\text{Volume of unit hypersphere}} \\ &= \frac{K_d\times(1)^d - K_d\times(1-\epsilon)^d}{K_d\times(1)^d} \\ &= 1 - (1-\epsilon)^d \end{align*} \]
Observe that \((1-\epsilon)^d\) goes to 0 as \(d \rightarrow \infty\) and \(f_d\rightarrow 1\) as \(d \rightarrow \infty\).
This means that as \(d\rightarrow \infty\), all of the points that are within 1 unit of our location, are almost exactly 1 unit from our location.
The following example is based on Data Science from Scratch, Joel Grus, Second Edition, Chapter 12.
Here’s another example.
We create 100 points, scattered at random within a \(d\)-dimensional space.
We will look at two quantities as we vary \(d\).
import sklearn.metrics as metrics
nsamples = 1000
unif_X = np.random.default_rng().uniform(0, 1, nsamples).reshape(-1, 1)
euclidean_dists = metrics.euclidean_distances(unif_X)
# extract the values above the diagonal
dists = euclidean_dists[np.triu_indices(nsamples, 1)]
mean_dists = [np.mean(dists)]
min_dists = [np.min(dists)]
for d in range(2, 101):
unif_X = np.column_stack([unif_X, np.random.default_rng().uniform(0, 1, nsamples)])
euclidean_dists = metrics.euclidean_distances(unif_X)
dists = euclidean_dists[np.triu_indices(nsamples, 1)]
mean_dists.append(np.mean(dists))
min_dists.append(np.min(dists))plt.figure(figsize = (6, 3))
plt.plot(min_dists, label = "Minimum Distance")
plt.plot(mean_dists, label = "Average Distance")
plt.xlabel(r'Number of dimensions ($d$)')
plt.ylabel('Distance')
plt.legend(loc = 'best')
plt.title(f'Comparison of Minimum Versus Average Distance Between {nsamples} Points\nAs Dimension Grows')
plt.show()
The average distance between points grows. However we also observe that the minimum distance between points grows at a similar rate.

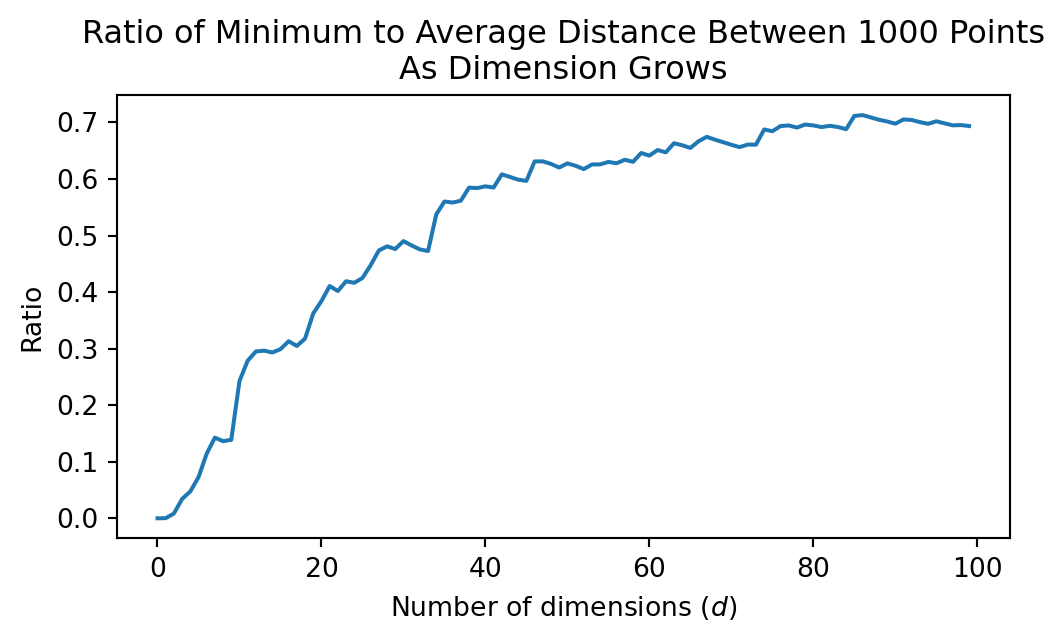

Let’s look at the ratio between the average distance between points and the minimum distance between points.
plt.figure(figsize = (6, 3))
plt.plot([a/b for a, b in zip(min_dists, mean_dists)])
plt.xlabel(r'Number of dimensions ($d$)')
plt.ylabel('Ratio')
plt.title(f'Ratio of Minimum to Average Distance Between {nsamples} Points\nAs Dimension Grows')
plt.show()
This shows that, for any test point \(x\), the distance to the closest point to \(x\), gets closer and closer to the average distance between points.
If we used a point at the average distance for classifying \(x\) we’d get a very poor classifier.
For \(k\)-NN, the Curse of Dimensionality means that in high dimensions most points are nearly the same distance from the test point.
This makes \(k\)-NN ineffective. It cannot reliably tell which are the \(k\) nearest neighbors and its performance degrades as \(d\) increases.
What Can be Done?
The problem is that you simply cannot have enough data to do a good job using \(k\)-NN in high dimensions.
Alternative approaches to mitigate this issue
Recall that each value of \(k\) provides a different model.
To better understand model selection, we need a way to evaluate our different models.
How do we evaluate a classifier?
In the simple case of a binary classifier, we can call
The most basic measure of success for a classifier is accuracy:
Accuracy is important, however it may not convey enough useful information.
For example, let’s say we have a dataset showing class imbalance, e.g., 90% of the data are the Positive class and 10% are the Negative class.
For this dataset, consider a classifier that always predicts ‘Positive’.
Its accuracy is 90%, but it is not an effective classifier.
A better way to measure the classifier’s performance is using a Confusion Matrix.
Diagonal elements represent successes and off diagonals represent errors.

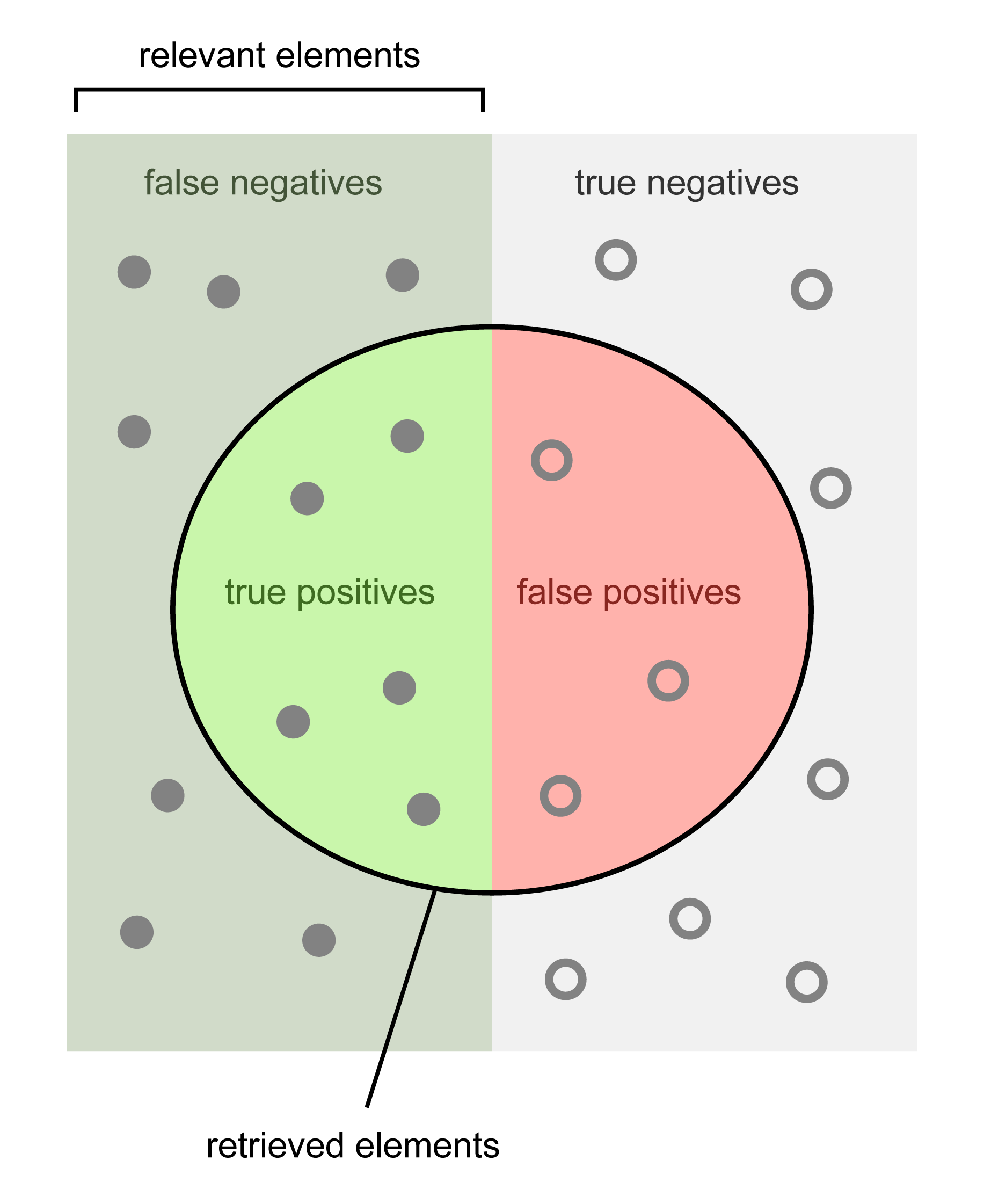

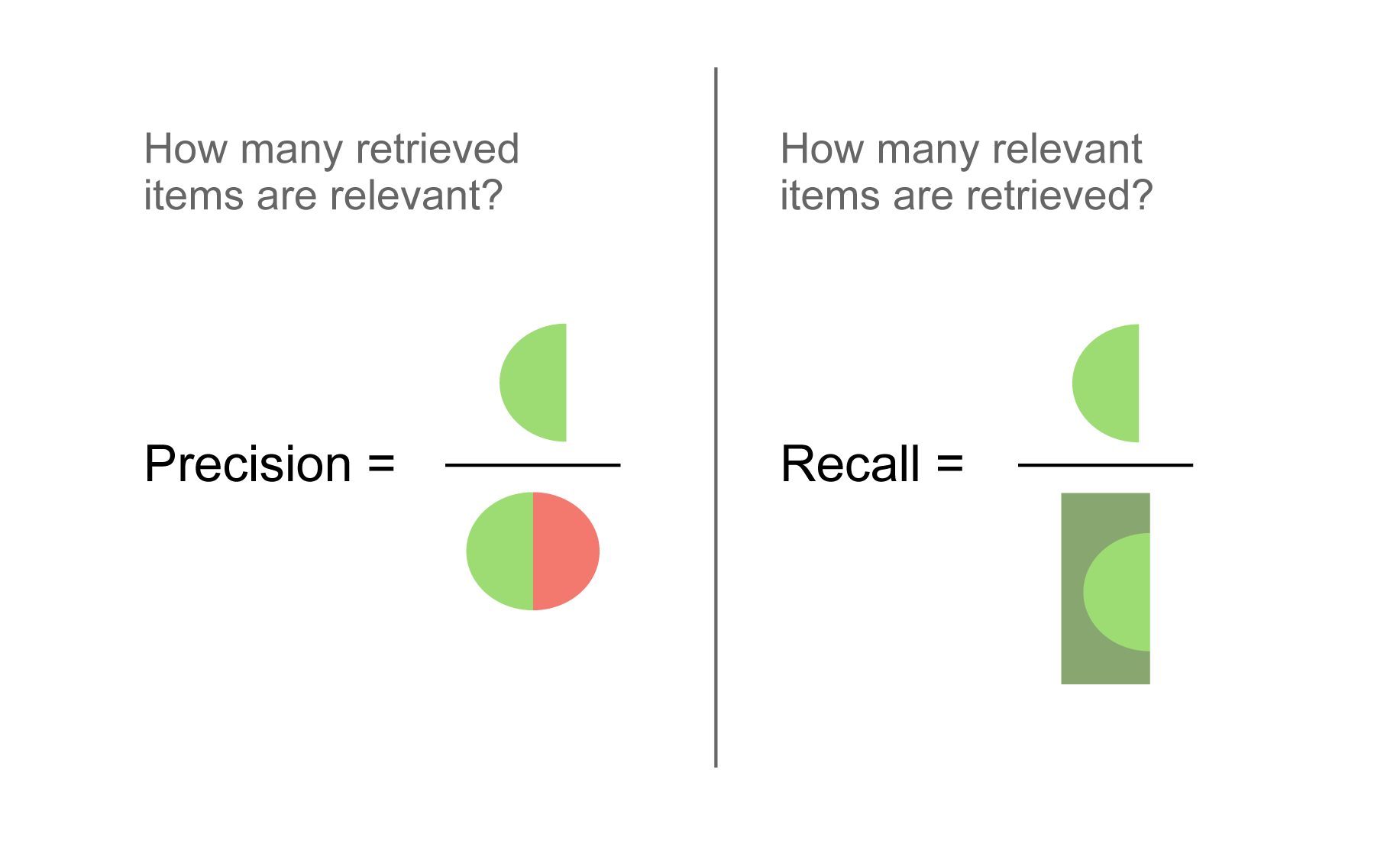

Using the confusion matrix we can define some more useful measures:
First we’ll generate some synthetic data to work with.
X, y = datasets.make_circles(noise=.1, factor=.5, random_state=1)
print('Shape of data: {}'.format(X.shape))
print('Unique labels: {}'.format(np.unique(y)))Shape of data: (100, 2)

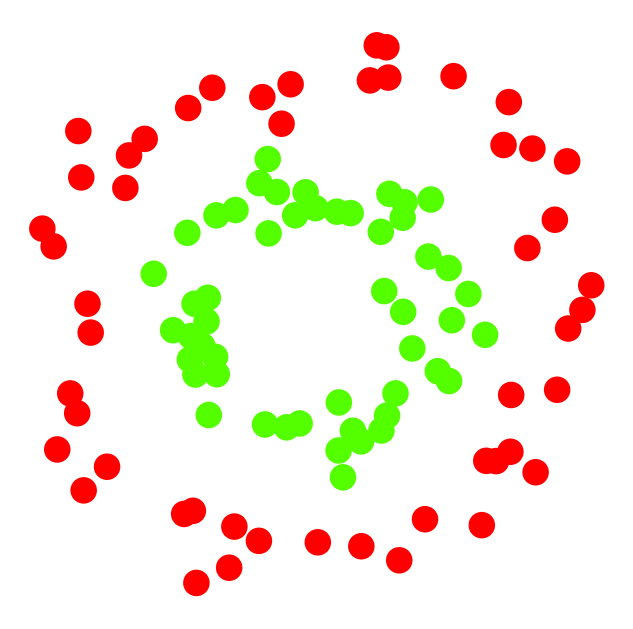

Unique labels: [0 1]Here is what the data looks like.
plt.figure(figsize = (4, 4))
plt.prism() # this sets a nice color map
plt.scatter(X[:, 0], X[:, 1], c=y, s = 80)
plt.axis('off')
plt.axis('equal')
plt.show()
Recall that we always want to test on data separate from our training data.
For now, we will do something very simple: take the first 50 examples for training and the rest for testing.
X_train = X[:50]
y_train = y[:50]
X_test = X[50:]

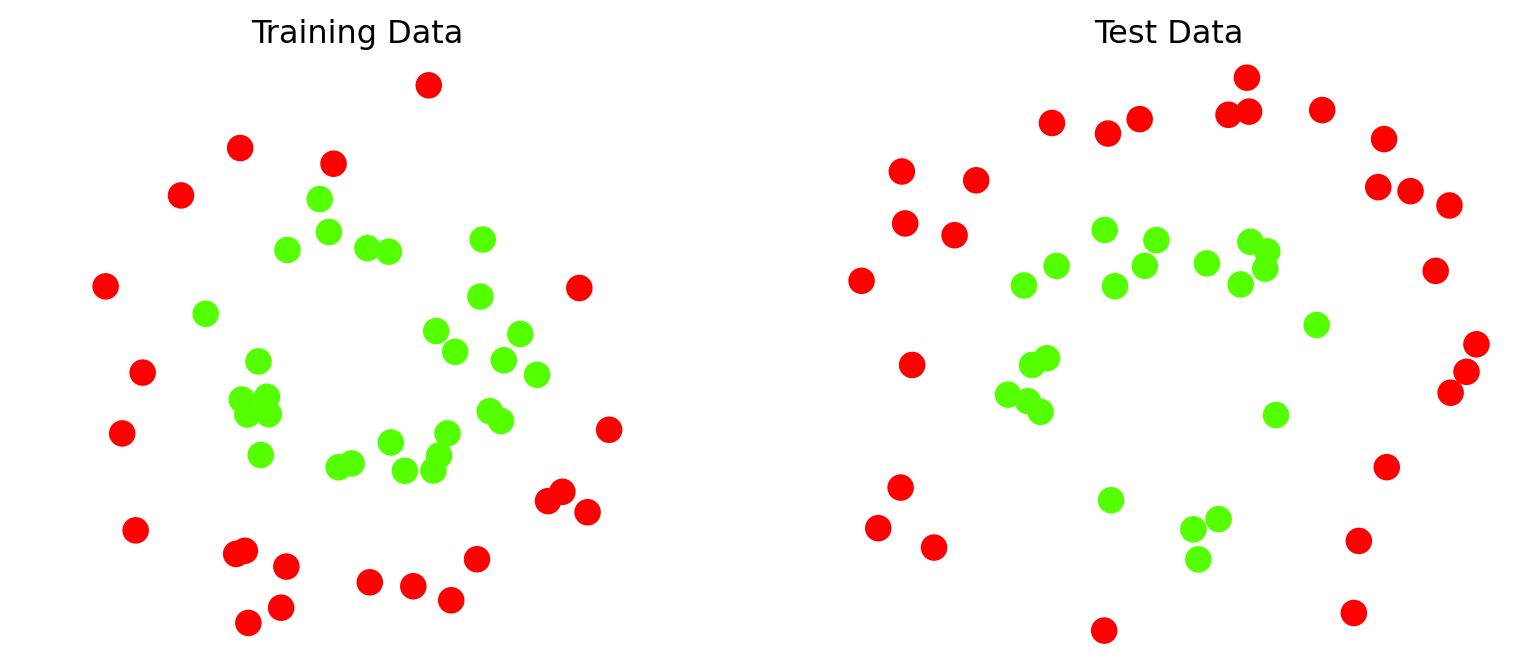

y_test = y[50:]plt.figure(figsize = (10, 4))
plt.subplot(1, 2, 1)
plt.scatter(X_train[:, 0], X_train[:, 1], c = y_train, s = 80)
plt.axis('equal')
plt.axis('off')
plt.title('Training Data')
plt.subplot(1, 2, 2)
plt.scatter(X_test[:, 0], X_test[:, 1], c = y_test, s = 80)
plt.title('Test Data')
plt.axis('equal')
plt.axis('off')
plt.show()
For our first example, we will classify the points (in the two classes) using a \(k\)-NN classifier.
We will specify that \(k=5\), i.e., we will classify based on the majority vote of the 5 nearest neighbors.
k = 5
knn5 = KNeighborsClassifier(n_neighbors = k) As we have seen previously, the scikit-learn fit() function corresponds to training and the predict() function corresponds to testing.
knn5.fit(X_train,y_train)
print(f'Accuracy on test data: {knn5.score(X_test, y_test)}')Accuracy on test data: 0.72Accuracy of 72% sounds good – but let’s dig deeper.
We’ll call the red points the Positive class and the green points the Negative class.
Here is the confusion matrix:
y_pred_test = knn5.predict(X_test)
pd.DataFrame(metrics.confusion_matrix(y_test, y_pred_test),
columns = ['Predicted 1', 'Predicted 0'],
index = ['Actual 1', 'Actual 0'])| Predicted 1 | Predicted 0 | |
|---|---|---|
| Actual 1 | 14 | 14 |
| Actual 0 | 0 | 22 |
Looks like the classifier is getting all of the Negative class correct, but only achieving accuracy of 50% on the Positive class.
That is, its precision is 100%, but its recall is only 50%.
Let’s visualize the results.
k = 5
plt.figure(figsize = (10, 4))
plt.subplot(1, 2, 1)
plt.scatter(X_train[:, 0], X_train[:, 1], c = y_train, s = 80)
plt.axis('equal')
plt.title('Training')
plt.axis('off')
plt.subplot(1, 2, 2)
plt.scatter(X_test[:, 0], X_test[:, 1], c = y_pred_test, s = 80)
plt.title(f'Testing $k$={k}\nAccuracy: {knn5.score(X_test, y_test)}')
plt.axis('off')
plt.axis('equal')
plt.show()
Indeed, the Positive (red) points in the upper half of the test data are all classified incorrectly.

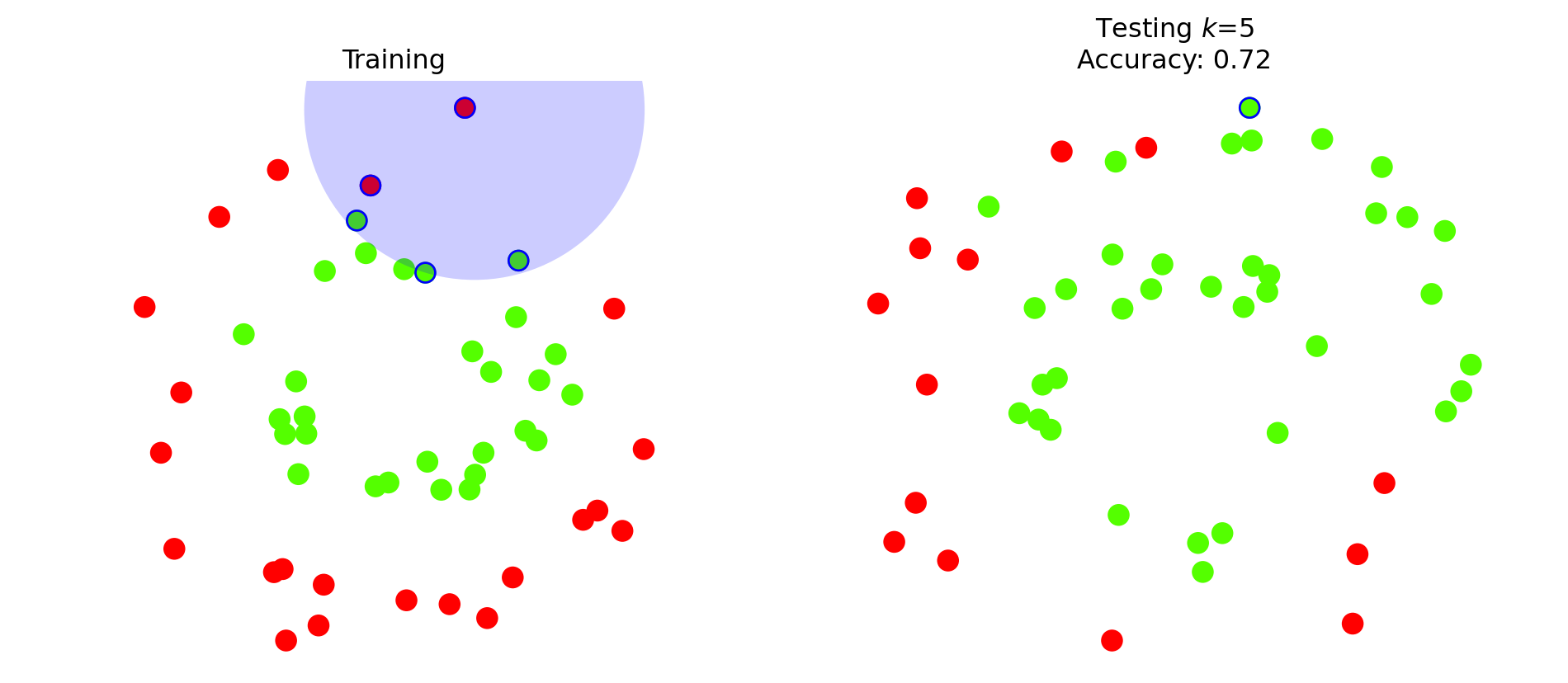

Let’s look at one of the points that the classifier got wrong.
k=5
test_point = np.argmax(X_test[:, 1])
neighbors = knn5.kneighbors([X_test[test_point]])[1]
plt.figure(figsize = (10, 4))
plt.subplot(1, 2, 1)
plt.scatter(X_train[:, 0], X_train[:, 1], c = y_train, s = 80)
plt.scatter(X_train[neighbors,0], X_train[neighbors,1],
c = y_train[neighbors], marker='o',
facecolors='none', edgecolors='b', s = 80)
radius = np.max(metrics.euclidean_distances(X_test[test_point].reshape(1, -1), X_train[neighbors][0]))
ax = plt.gcf().gca()
circle = mp.patches.Circle(X_test[test_point], radius, facecolor = 'blue', alpha = 0.2)
ax.add_artist(circle)
plt.axis('equal')
plt.axis('off')
plt.tight_layout()
plt.title(r'Training')
plt.subplot(1, 2, 2)
plt.scatter(X_test[:, 0], X_test[:, 1], c = y_pred_test, s = 80)
plt.scatter(X_test[test_point, 0], X_test[test_point, 1], marker='o',
facecolors='none', edgecolors='b', s = 80)
plt.title('Testing $k$={}\nAccuracy: {}'.format(k,knn5.score(X_test, y_test)))
plt.axis('equal')
plt.axis('off')
plt.show()
For comparison purposes, let’s try \(k\) = 3.
k = 3
knn3 = KNeighborsClassifier(n_neighbors=k)
knn3.fit(X_train,y_train)
y_pred_test = knn3.predict(X_test)

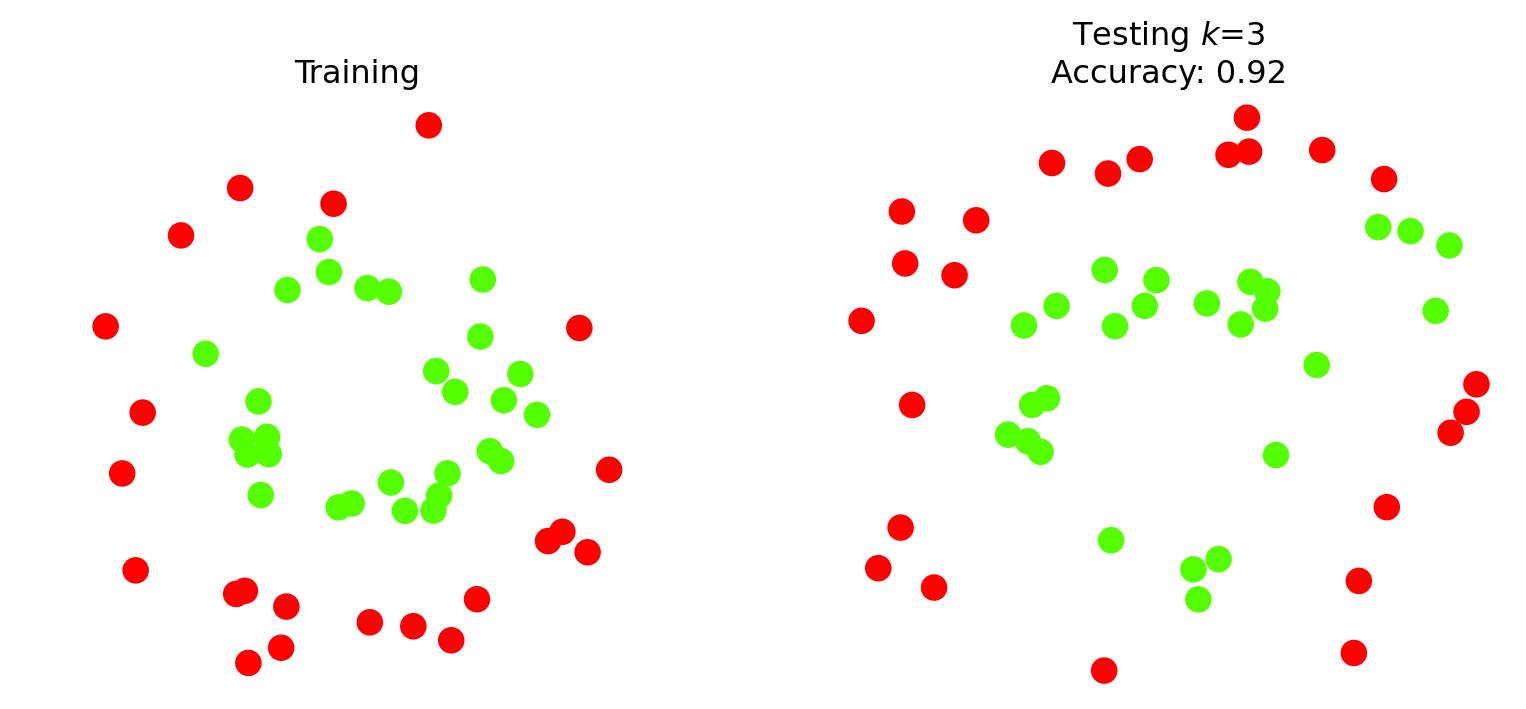

plt.figure(figsize = (10, 4))
plt.subplot(1, 2, 1)
plt.scatter(X_train[:, 0], X_train[:, 1], c=y_train, s = 80)
plt.axis('equal')
plt.axis('off')
plt.title(r'Training')
plt.subplot(1, 2, 2)
plt.scatter(X_test[:, 0], X_test[:, 1], c=y_pred_test, s = 80)
plt.title(f'Testing $k$={k}\nAccuracy: {knn3.score(X_test, y_test)}')
plt.axis('off')
plt.axis('equal')
plt.show()
And let’s look at the same individual point as before.
k = 3
test_point = np.argmax(X_test[:,1])
X_test[test_point]
neighbors = knn3.kneighbors([X_test[test_point]])[1]
plt.figure(figsize = (10, 4))
plt.subplot(1, 2, 1)
plt.scatter(X_train[:, 0], X_train[:, 1], c=y_train, s = 80)
plt.scatter(X_train[neighbors, 0], X_train[neighbors, 1], marker = 'o',
facecolors = 'none', edgecolors = 'b', s = 80)
radius = np.max(metrics.euclidean_distances(X_test[test_point].reshape(1, -1),
X_train[neighbors][0]))
ax = plt.gcf().gca()
circle = mp.patches.Circle(X_test[test_point], radius, facecolor = 'blue', alpha = 0.2)
ax.add_artist(circle)
plt.axis('equal')
plt.axis('off')
plt.title(r'Training')
plt.subplot(1, 2, 2)
plt.scatter(X_test[:, 0], X_test[:, 1], c = y_pred_test, s = 80)
plt.scatter(X_test[test_point,0], X_test[test_point,1], marker = 'o',
facecolors = 'none', edgecolors = 'b', s = 80)
plt.title(f'Testing $k$={k}\nAccuracy: {knn3.score(X_test, y_test)}')
plt.axis('off')
plt.axis('equal')
plt.show()
So how confident can we be that the test accuracy is 92% in general?
What we really need to do is consider many different train/test splits.
Thus, the proper way to evaluate generalization ability (accuracy on the test data) is:
import sklearn.model_selection as model_selection
nreps = 50
kvals = range(1, 10)
acc = []
np.random.seed(4)
for k in kvals:
test_rep = []
train_rep = []
for i in range(nreps):
X_train, X_test, y_train, y_test = model_selection.train_test_split(X,
y,
test_size = 0.5)
knn = KNeighborsClassifier(n_neighbors = k)
knn.fit(X_train, y_train)
train_rep.append(knn.score(X_train, y_train))
test_rep.append(knn.score(X_test, y_test))
acc.append([np.mean(np.array(test_rep)), np.mean(np.array(train_rep))])

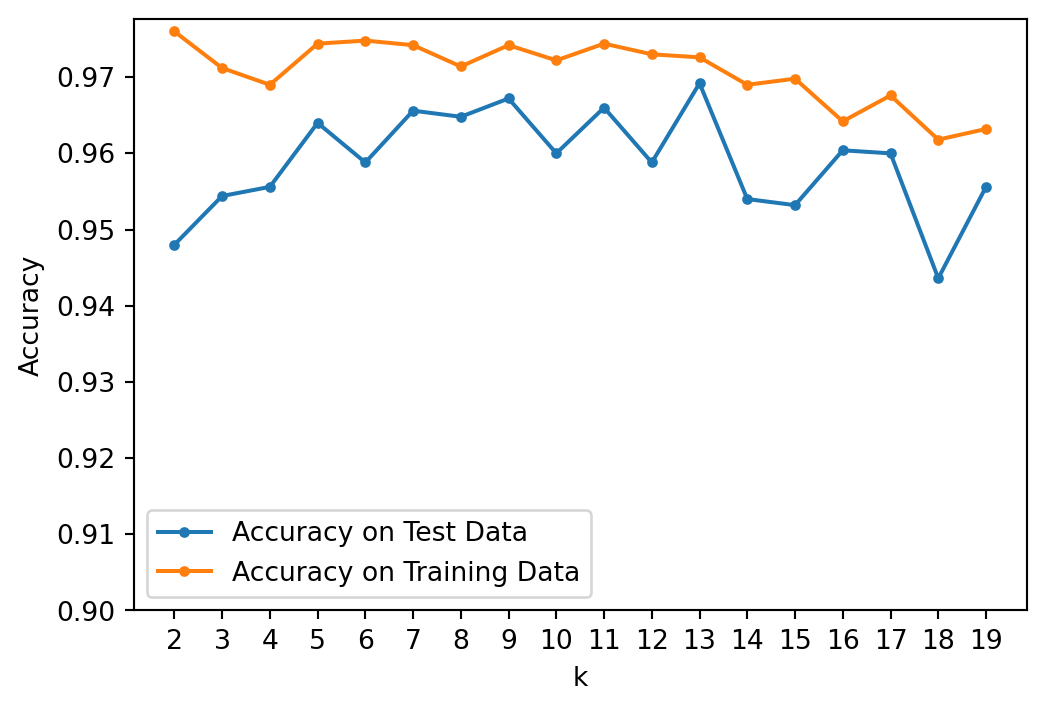

accy = np.array(acc)plt.plot(kvals, accy[:, 0], '.-', label = 'Accuracy on Test Data')
plt.plot(kvals, accy[:, 1], '.-', label = 'Accuracy on Training Data')
plt.xlabel(r'$k$')
plt.ylabel('Accuracy')
plt.title('Train/Test Comparision of $k$-NN')
plt.legend(loc = 'best')
plt.show()
Based on the generalization error, i.e., accuracy on the held-out test data, it looks like \(k = 2\) is the best choice.

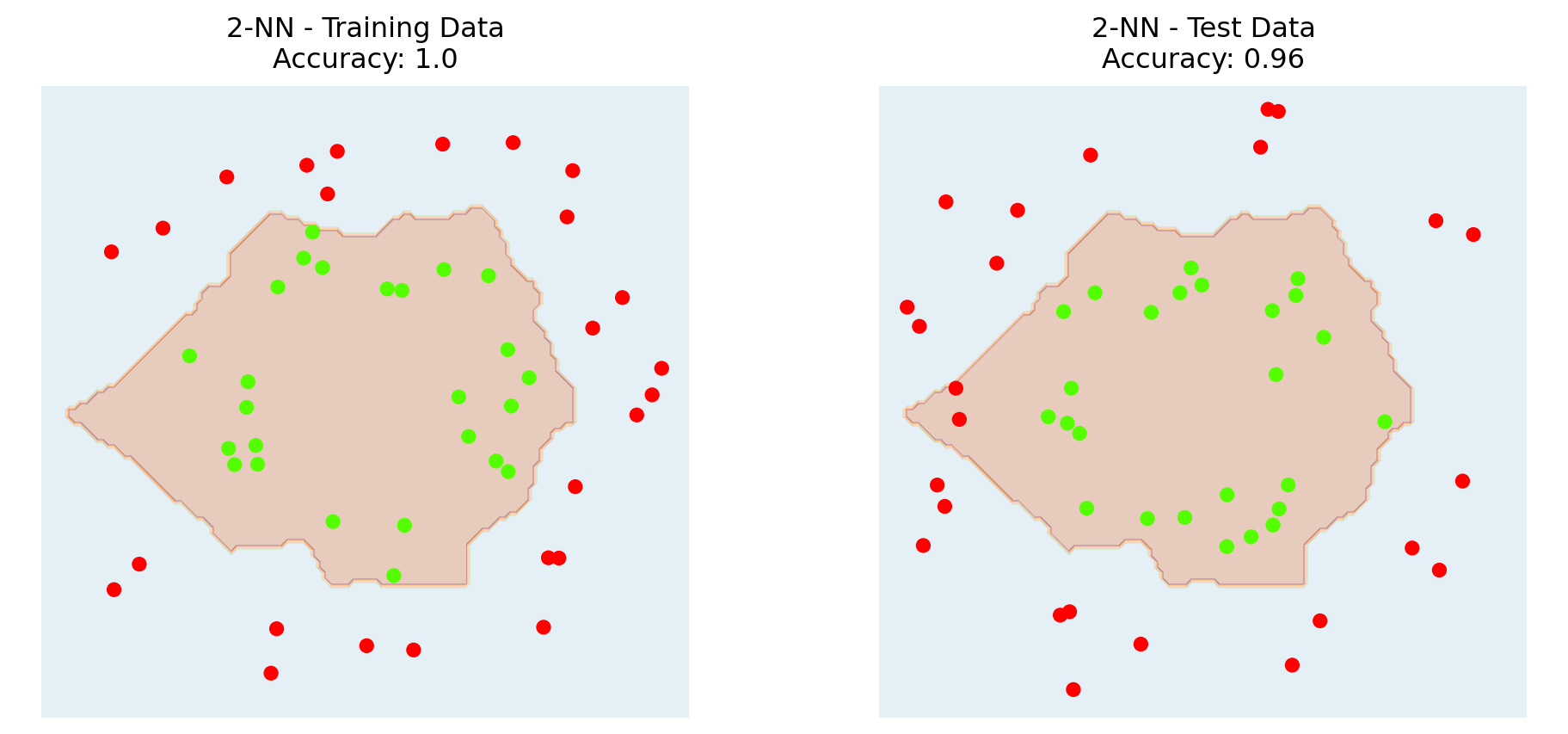

Here is the decision boundary for \(k\)-NN with \(k = 2\).
x_min, x_max = X[:, 0].min() - .1, X[:, 0].max() + .1
y_min, y_max = X[:, 1].min() - .1, X[:, 1].max() + .1
plot_step = 0.02
xx, yy = np.meshgrid(np.arange(x_min, x_max, plot_step),
np.arange(y_min, y_max, plot_step))np.random.seed(1)
X_train, X_test, y_train, y_test = model_selection.train_test_split(X, y, test_size = 0.5)
k = 2
knn = KNeighborsClassifier(n_neighbors = k)
knn.fit(X_train, y_train)
y_pred_train = knn.predict(X_train)
y_pred_test = knn.predict(X_test)
Z = knn.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)
plt.figure(figsize = (12, 5))
plt.subplot(1, 2, 1)
cs = plt.contourf(xx, yy, Z, cmap=plt.cm.Paired, alpha=0.3)
plt.scatter(X_train[:, 0], X_train[:, 1], c=y_train, s=30)
plt.axis('equal')
plt.axis('off')
plt.xlim((x_min, x_max))
plt.ylim((y_min, y_max))
plt.title(f'{k}-NN - Training Data\nAccuracy: {knn.score(X_train, y_train)}')
plt.subplot(1, 2, 2)
cs = plt.contourf(xx, yy, Z, cmap=plt.cm.Paired, alpha=0.3)
plt.scatter(X_test[:, 0], X_test[:, 1], c=y_test, s=30)
plt.axis('equal')
plt.axis('off')
plt.xlim((x_min, x_max))
plt.ylim((y_min, y_max))
plt.title(f'{k}-NN - Test Data\nAccuracy: {knn.score(X_test, y_test)}')
plt.show()
To explore a few more issues, we’ll now turn to some famous datasets that have been extensively studied in the past.
The Iris dataset is a famous dataset used by Ronald Fisher in a classic 1936 paper on classification.
Quoting from Wikipedia:
The data set consists of 50 samples from each of three species of Iris (Iris setosa, Iris virginica and Iris versicolor). Four features were measured from each sample: the length and the width of the sepals and petals, in centimetres. Based on the combination of these four features, Fisher developed a linear discriminant model to distinguish the species from each other.
iris = datasets.load_iris()
X = iris.data
y = iris.target
ynames = iris.target_names
print(X.shape, y.shape)
print(X[1, :])
print(iris.target_names)
print(y)(150, 4) (150,)
[4.9 3. 1.4 0.2]
['setosa' 'versicolor' 'virginica']
[0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
2 2]First, we’ll explore setting the hyperparameters. We start with \(k\)-NN.
To set the hyperparameter \(k\), we evaluate error on the test set for many train/test splits:
X = iris.data
y = iris.target
kvals = range(2, 20)
nreps = 50
acc = []
std = []
np.random.seed(0)
for k in kvals:
test_rep = []
train_rep = []
for i in range(nreps):
X_train, X_test, y_train, y_test = model_selection.train_test_split(
X, y, test_size = 0.33)
knn = KNeighborsClassifier(n_neighbors = k)
knn.fit(X_train, y_train)
train_rep.append(knn.score(X_train, y_train))
test_rep.append(knn.score(X_test, y_test))
acc.append([np.mean(np.array(test_rep)), np.mean(np.array(train_rep))])
std.append([np.std(np.array(test_rep)), np.std(np.array(train_rep))])plt.figure(figsize= (6, 4))
accy = np.array(acc)
stds = np.array(std)/np.sqrt(nreps)
print(f'Max Test Accuracy at k = {kvals[np.argmax(accy[:, 0])]} with accuracy {np.max(accy[:, 0]):.03f}')
plt.plot(kvals, accy[:, 0], '.-', label = 'Accuracy on Test Data')
plt.plot(kvals, accy[:, 1], '.-', label = 'Accuracy on Training Data')
plt.xlabel('k')
plt.ylabel('Accuracy')
plt.xticks(kvals)
plt.legend(loc = 'best')
plt.show()Max Test Accuracy at k = 13 with accuracy 0.969
It looks like \(k\) = 13 is the best-performing value of the hyperparameter.
Can we be sure?
Be careful! Each point in the above plot is the mean of 50 random train/test splits!
If we are going to be sure that \(k\) = 13 is best, then it should be be statistically distinguishable from the other values.

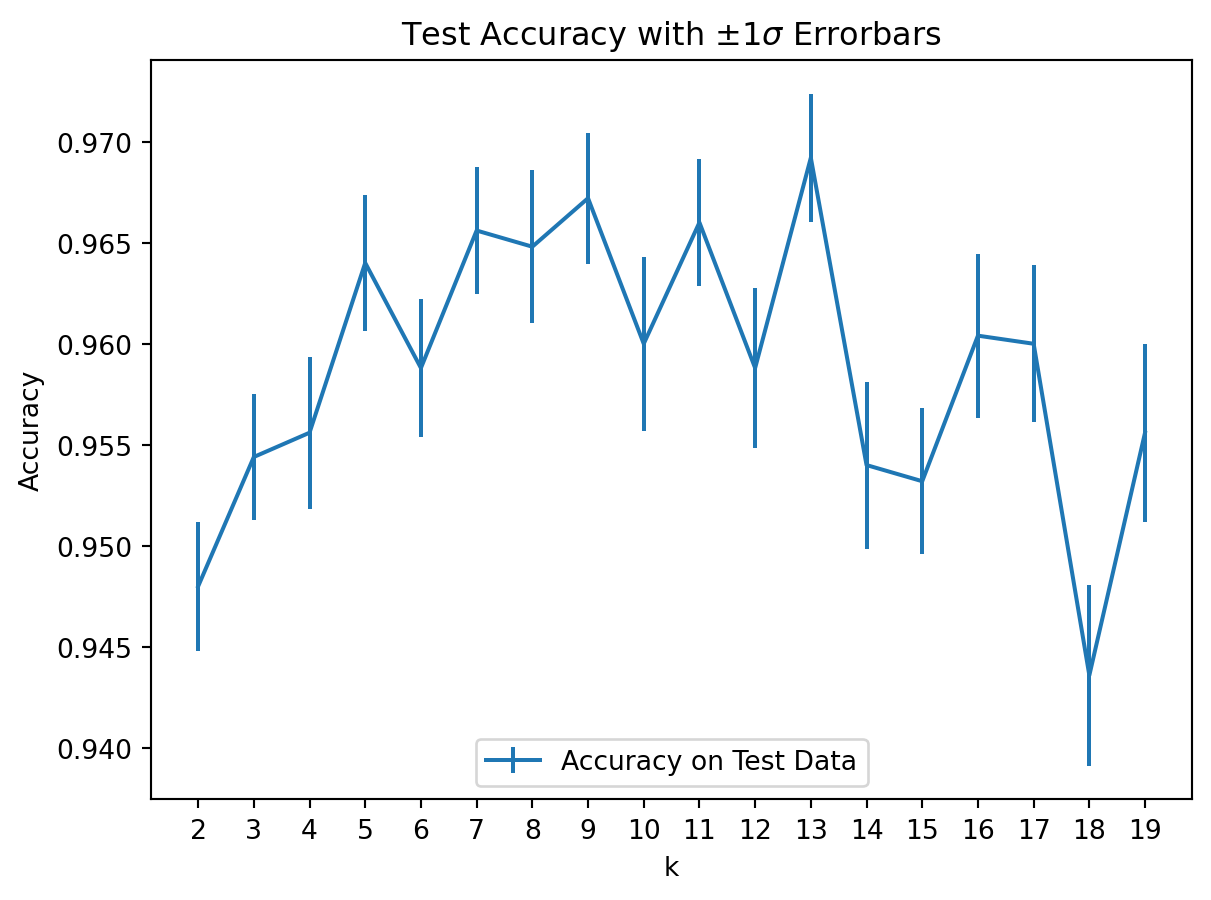

To make this call, let’s plot \(\pm 1 \sigma\) confidence intervals on the mean values.
See the Probability Refresher for details on the proper formula.
plt.errorbar(kvals, accy[:, 0], stds[:, 0], label = 'Accuracy on Test Data')
plt.xlabel('k')
plt.ylabel('Accuracy')
plt.legend(loc = 'lower center')
plt.xticks(kvals)
plt.title(r'Test Accuracy with $\pm 1\sigma$ Errorbars')
plt.show()
It looks like \(k\) = 13 is a reasonable value, although a case can be made that 9 and 11 are not statistically distinguishable from 13.
To gain insight into the complexity of the model for \(k\) = 13, let’s look at the decision boundary.
We will re-run the classifier using only two (of four) features for visualization purposes.
# Create color maps
from matplotlib.colors import ListedColormap
cmap_light = ListedColormap(['#FFAAAA', '#AAFFAA', '#AAAAFF'])
cmap_bold = ListedColormap(['#FF0000', '#00FF00', '#0000FF'])
# we will use only the first two (of four) features, so we can visualize
X = X_train[:, :2]
h = .02 # step size in the mesh
k = 13
knn = KNeighborsClassifier(n_neighbors=k)
knn.fit(X, y_train)
# Plot the decision boundary. For that, we will assign a color to each
# point in the mesh [x_min, x_max]x[y_min, y_max].
x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, h),
np.arange(y_min, y_max, h))
Z = knn.predict(np.c_[xx.ravel(), yy.ravel()])
# Put the result into a color plot
Z = Z.reshape(xx.shape)
plt.figure(figsize=(6, 4))
plt.pcolormesh(xx, yy, Z, cmap=cmap_light, shading='auto')
# Plot also the training points
plt.scatter(X[:, 0], X[:, 1], c=y_train, cmap=cmap_bold)
plt.xlim(xx.min(), xx.max())
plt.ylim(yy.min(), yy.max())

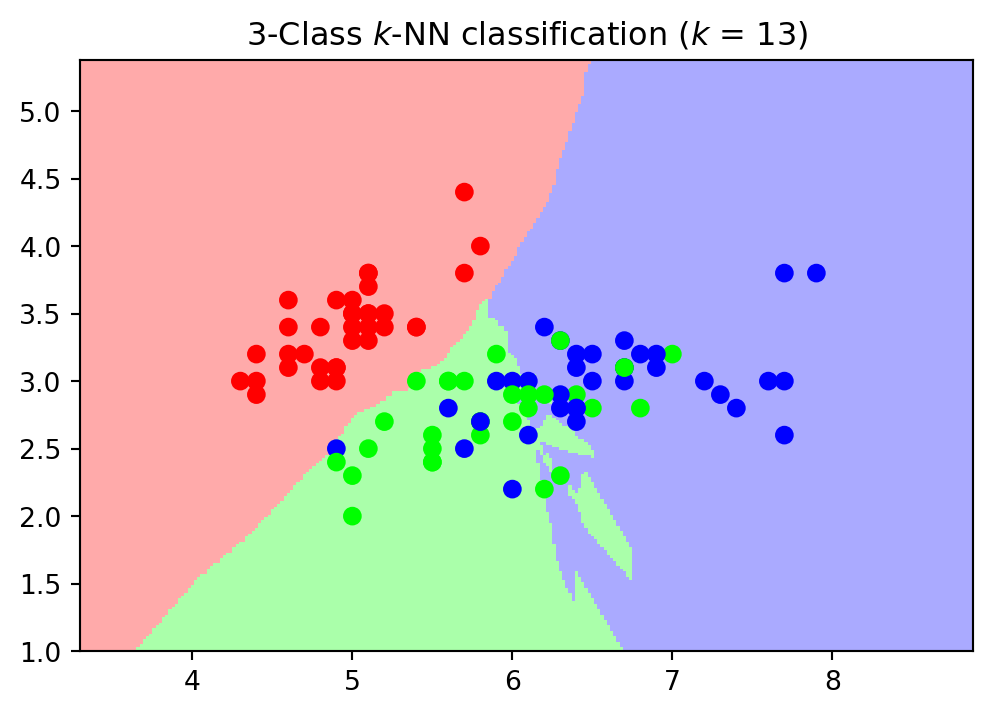

plt.title(f"3-Class $k$-NN classification ($k$ = {k})")
plt.show()
There are a few artifacts, though overall this looks like a reasonably smooth set of decision boundaries.
NIST used to be called the “National Bureau of Standards.” These are the folks who bring you the reference meter, reference kilogram, etc.
NIST constructed datasets for machine learning of handwritten digits. These were collected from Census Bureau employees and also from high-school students.
This dataset has been used repeatedly for many years to evaluate classifiers. For a peek at some of the work done with this dataset you can visit this link.
import sklearn.utils as utils
digits = datasets.load_digits()
X, y = utils.shuffle(digits.data, digits.target, random_state = 1)
print ('Data shape: {}'.format(X.shape))
print ('Data labels: {}'.format(y))
print ('Unique labels: {}'.format(digits.target_names))Data shape: (1797, 64)
Data labels: [1 5 0 ... 9 1 5]
Unique labels: [0 1 2 3 4 5 6 7 8 9]An individual item is an \(8 \times 8\) image, encoded as a matrix:
digits.images[3]array([[ 0., 0., 7., 15., 13., 1., 0., 0.],
[ 0., 8., 13., 6., 15., 4., 0., 0.],
[ 0., 2., 1., 13., 13., 0., 0., 0.],
[ 0., 0., 2., 15., 11., 1., 0., 0.],
[ 0., 0., 0., 1., 12., 12., 1., 0.],
[ 0., 0., 0., 0., 1., 10., 8., 0.],
[ 0., 0., 8., 4., 5., 14., 9., 0.],
[ 0., 0., 7., 13., 13., 9., 0., 0.]])Here we show the matrix as an image.
fig, ax = plt.subplots()
ax.matshow(digits.images[3], cmap='gray_r')
plt.show()

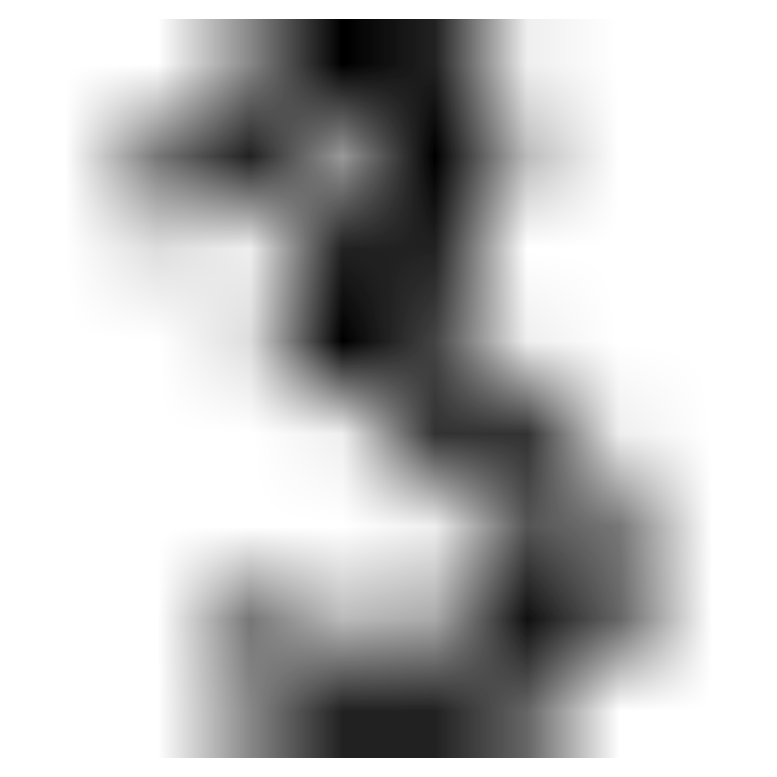

It is easier to visualize if we blur the pixels a little bit.
plt.rc('image', cmap = 'binary', interpolation = 'bilinear')
plt.figure(figsize = (5, 5))
plt.axis('off')
plt.imshow(digits.images[3])
plt.show()

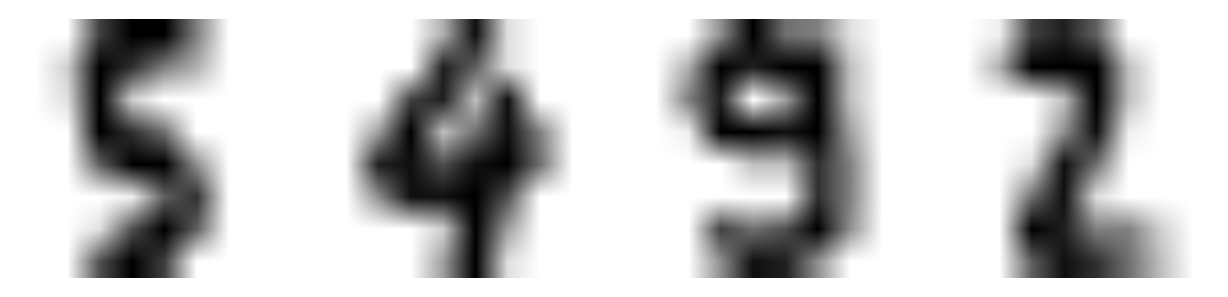

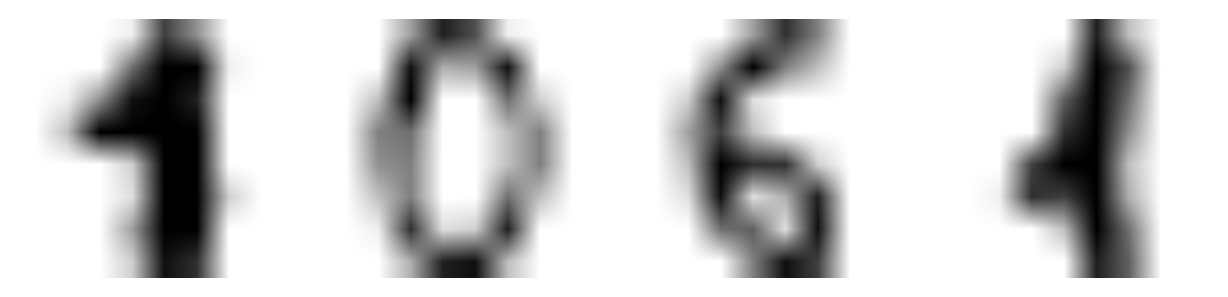

Here are some more samples from the dataset.
for t in range(3):
plt.figure(figsize = (8, 2))
for j in range(4):
plt.subplot(1, 4, 1 + j)
plt.imshow(X[4*t + j].reshape(8, 8))
plt.axis('off')
plt.show()
Although this is an 8 \(\times\) 8 image, we can reshape it to a vector of length 64.
To do model selection, we will again average over many train/test splits.
However, since the performance of \(k\)-NN degrades on large sets of data we may decide to limit the size of our testing set to speed up testing.
How does the train/test split affect results?
Let’s consider two cases:
def test_knn(kvals, test_fraction, nreps):
acc = []
std = []
np.random.seed(0)
#
for k in kvals:
test_rep = []
train_rep = []
for i in range(nreps):
X_train, X_test, y_train, y_test = model_selection.train_test_split(
X, y, test_size = test_fraction)
knn = KNeighborsClassifier(n_neighbors = k)
knn.fit(X_train, y_train)
test_rep.append(knn.score(X_test, y_test))
acc.append(np.mean(np.array(test_rep)))
std.append(np.std(np.array(test_rep)))
return(np.array(acc), np.array(std)/np.sqrt(nreps))
test_fraction1 = 0.33
accy1, stds1 = test_knn(range(2, 20), test_fraction1, 50)
test_fraction2 = 0.10
accy2, stds2 = test_knn(range(2, 20), test_fraction2, 50)plt.figure(figsize = (6, 4))
plt.errorbar(kvals, accy1, stds1,
label = f'{test_fraction1:.0%} Used for Testing; accuracy {np.max(accy1):.03f}')
plt.errorbar(kvals, accy2, stds2,
label = f'{test_fraction2:.0%} Used for Testing; accuracy {np.max(accy2):.03f}')
plt.xlabel('k')
plt.ylabel('Accuracy')
plt.legend(loc = 'best')
plt.xticks(kvals)
best_k = kvals[np.argmax(accy1)]
plt.title(f'Test Accuracy with $\\pm 1\\sigma$ Error Bars')
plt.show()
These plots illustrate show two important principles.
The key decision here is what value to choose for \(k\). So it makes sense to use the 33% test split, because the smaller error bars give us better confidence in our decision.

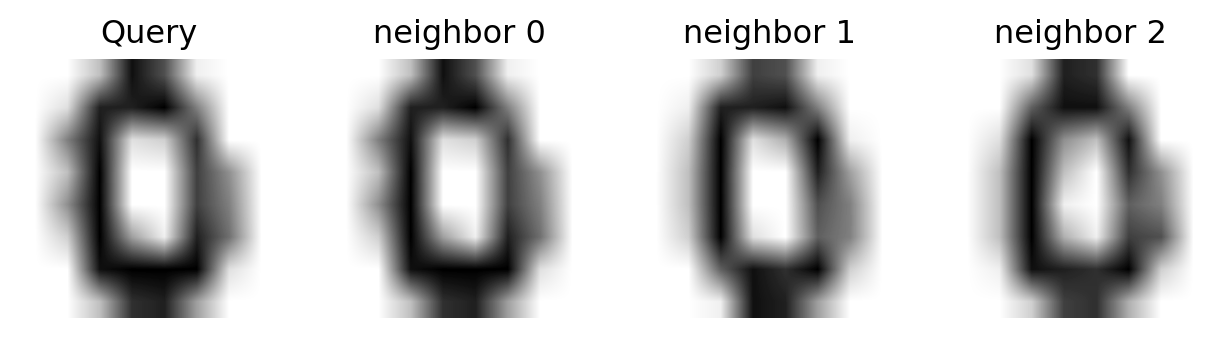

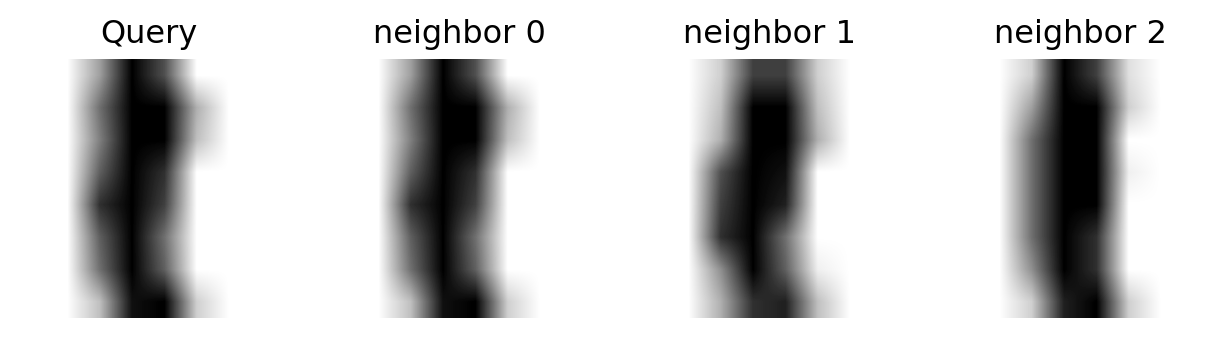

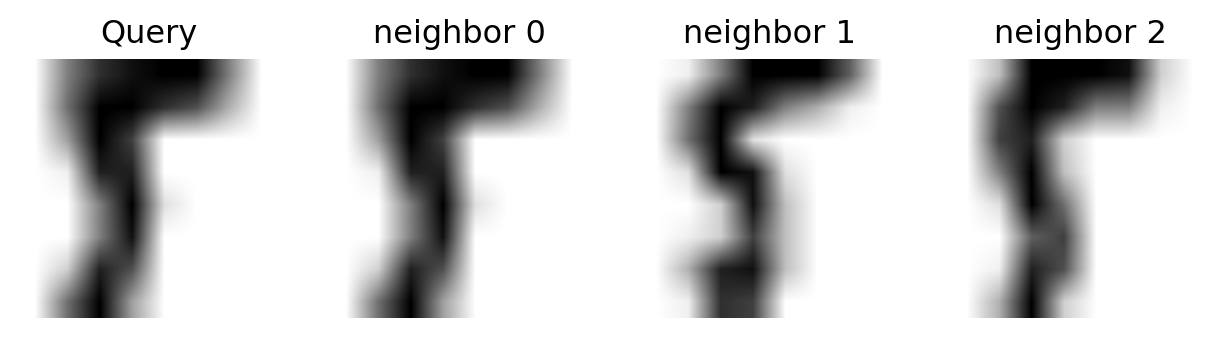

We can get a sense of why \(k\)-NN can succeed at this task by looking at the nearest neighbors of some points.
knn = KNeighborsClassifier(n_neighbors = 3)
knn.fit(X, y)
neighbors = knn.kneighbors(X[:3,:], n_neighbors=3, return_distance=False)plt.rc("image", cmap="binary") # this sets a black on white colormap
for t in range(3):
plt.figure(figsize=(8, 2))
plt.subplot(1, 4, 1)
plt.imshow(X[t].reshape(8, 8))
plt.axis('off')
plt.title("Query")
# plot three nearest neighbors from the training set
for i in [0, 1, 2]:
plt.subplot(1, 4, 2 + i)
plt.title("neighbor {}".format(i))
plt.imshow(X[neighbors[t, i]].reshape(8, 8))
plt.axis('off')
plt.show()
